»Intel Core i7/i5/i3/Pentium/celeronLGA1155/1150/775-Socket Motherboard,
»Resistive 5 Wire Touch Screen,
»IP64/65/66Grade Front Bezel,
»I/O:DVI/VGA/2*LAN/5*USB/4*COM/AUDIO/PCIex4/Wifi
| SPEC ITEM | DESCRIPTION |
| Display Specification | |

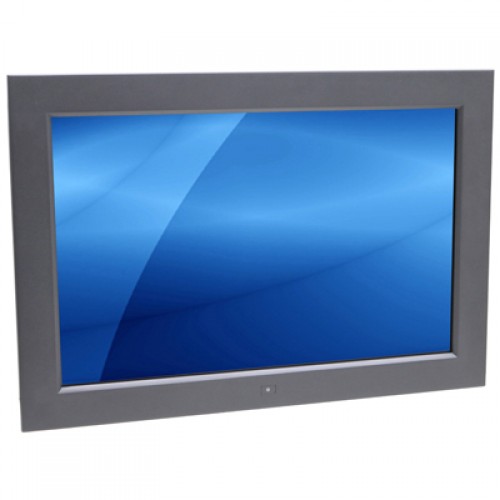

| Model Name | W24IH3S-MLS1-89 |
| Size | 24″ |
| Resolution | 1920 x 1200 |
| Contrast Ratio | 1000:1 (typ.) |
| Brightness | 300 (typ.) |
| Display Color | 16.7M |
| Viewing Angle | -89~89(H);-89~89(V) |
| System Specification | |
| Processor | Intel® Core i7 4650U 3.30GHz |
| BIOS | AMI 16 Mbit Flash |
| Memory | 1 x SO-DIMM DDR3L 1600, Default 4GB |
| Lan Controller | Intel® Ethernet Controller 1211-AT + |
| Intel® Gigabit Etherne PHY 1218-LM | |
| Storage | mSATA SSD, Default 64GB |
| Expansion Slot | 1 x Mini PCIe slot (for USB module) |
| I/O Connectors | |
| Plug & Play | VESA DDC 1/2B |
| Back Panel I/O Port | 1 x Power Input (MIL-DTL-38999/1) |
| 1 x VGA (MIL-DTL-38999/3) | |
| 1 x RS232 (MIL-DTL-38999/3) | |
| 1 x USB A Type (MIL-DTL-38999/3) | |
| 1 x LAN (MIL-DTL-38999/3) | |
| Mechanical and Environment | |
| Power Input | Default AC 110~240V IN |
| Optional isolation DC 9~36V IN | |
| Panel_Operating Temp | -20°C to +60°C |
| Operation Humidity | 95%RH ±3% |
| Product Option Items | |
| OS | Windows Embedded Standard 7 |
| Windows Embedded 8 Standard | |
| Windows Embedded 8.1 Industry | |
| Windows 10 IoT Enterprise | |
| Storage | mSATA SSD up to 256GB |
| EMI ITO Glass | EMI Coating Glass (Default AR Glass) |
| Wide Power Input Range | Optional isolation 9~36V DC IN |
| Accessories | |
| Standard | 1 x MIL-DTL-38999/1 Power Cord / Cable |
| 1 x MIL-DTL-38999/3 VGA Cable | |
| 1 x MIL-DTL-38999/3 RS232 Cable | |
| 1 x Driver & Manual CD | |
