RBT-N505

RBT-N505

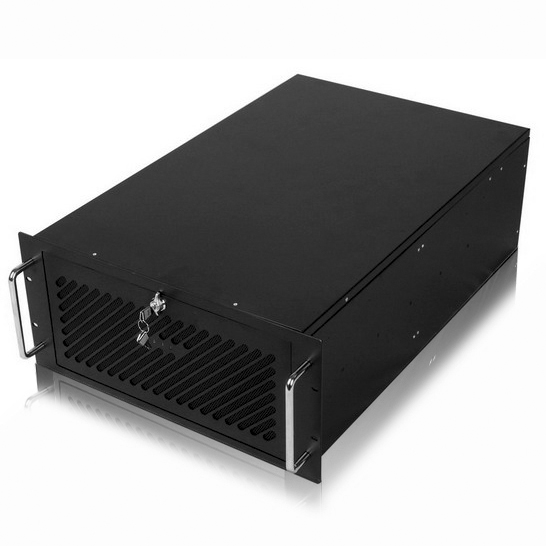

»RBT-N505 is a 5U extended depth (26”) server chassis capable of holding 8*5.25 drive devices,

»The three 12cm fans are in a perfect position to draw heated air off the hard drives & CPU and exhaust it out the rear of the chassis.

»Extend chassis to meet 12″*13″ M/B

»3 x 12cm fan wall and locking door

»8 x 5.25″ Peripheral Drive Bays

Description

SPEC ITEM	DESCRIPTION
*Dimension (WHD)*	19″8.75″26″/ 482222660 (mm)
Material Construction	Heavy-duty & Rugged Steel 3.0mm front bezel Hi-end Anti-rusty blue plating
M/B Size	EEB (12″X13″)
Expansion	7 slots rear side / 14 slots rear side
Control & Indicator	1Powerswitch+1Resetswitch+1*Switch(standby)

	1LED (Power)+1LED (HDD)+1*LED (standby)
Cooling Fans	3*12cm Fan
DriveBay	8*5.25
Power Supply	standard PS-2ATX or PS-2 Size Mini-Redundant
Power Supply	Power supply 300w~500w
Sliding rail	26″ball bearing sliding rail(option)
Color	Black or Beige
Operation Temperature	Up to 50C (122℉)
Operation Humidity (Non-condensing)	Up to 90%
Packing Measurement CBF / CBM	7.6 / 0.2152
Packing N.W / G.W	19.0KGS /22.0KGS
