| SPEC ITEM | DESCRIPTION |
| Panel Brand | TOSHIBA |

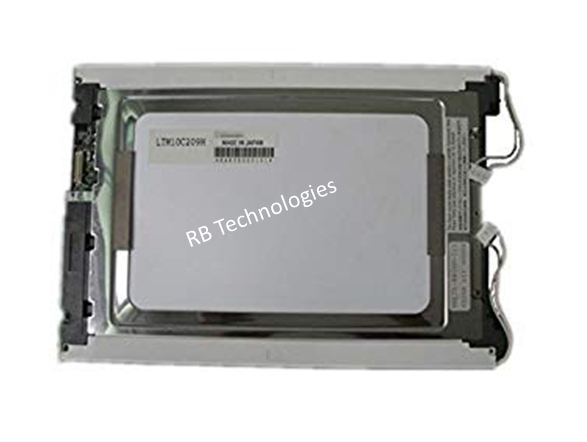

| Panel Model | LTM10C209 |
| Panel Size | 10.4 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480 , VGA |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.6(W)×163.0(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Viewing Angle | 60/60/40/50 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5/25 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 2 pcs CCFL , 40K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 590g (Typ.) |
| Signal Interface | 31 pins CMOS (1 ch, 6-bit) , Connector |
| Input Voltage | 5.0V (Typ.)(VDD) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
