| SPEC ITEM | DESCRIPTION |
| Panel Brand | NEC |

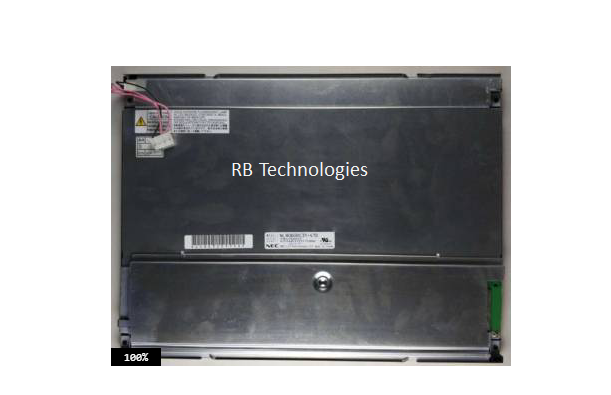

| Panel Model | NL8060BC31-41D |
| Panel Size | 12.1 Inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600 , SVGA |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Size | 280(W)×210(H) ×11.5(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/55 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o’clock |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Display Colors | 262K 40% (CIE1931) |
| Lamp Type | 2 pcs CCFL , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 670/700g (Typ./Max.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins , Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
