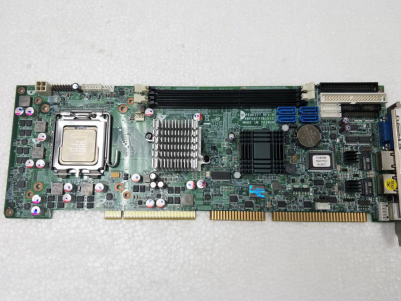

PCA-6187VG

»Socket 478 Intel® Pentium 4 Full-size Single Board Computer with VGA, GbE, HISA, RoHS

»6 USB 2.0 ports

»CMOS automatic backup and restore to prevent accidental data loss of BIOS setup

»HISA (ISA high drive) support

»Intel 865G chipset 400/533/800 MHz FSB

»Supports 10/100Base-T Ethernet or 10/100/1000Base-T Ethernet

»Supports Dual Channel DDR 400 SDRAM

»Supports up to 2 Serial-ATA devices

Description

SPEC ITEM	DESCRIPTION
Bus
Front Side Bus	400/533/800 MHz
ISA	HISA (ISA high drive)
PCI	32-bit/33 MHz
EIDE
Channel	2 (Max. 4 devices)
Mode	ATA 100/66/33
Environmental
Non-Operating Temperature	-20~70°C (-40 ~ 158°F)
Operating Temperature	0~60°C (32~140°F), depends on CPU’s speed
Ethernet
Connector	RJ-45 x 2
Controller	LAN 1: Intel 82562EZ (FE); Intel 82547GI (Gigabit, CSA); LAN 2: Intel 82541GI (Gigabit)
Interface	10/100Base-T; 10/100/1000Base-T (optional)
Graphics
Controller	Chipset integrated VGA controller
VRAM	Dynamically shared system memory, 8~64MB
I/O Interface
FDD	1
Parallel	1 (SPP/EPP/ECP)
PS/2	1
Serial	2 (RS-232)
USB	Max. 6 (USB 2.0 compliant), 4 ports on board for G2, F versions
Memory
Max. Capacity	4 GB
Socket	184-pin DIMM x 4
Technology	Dual Channel DDR266/333/400 SDRAM
Miscellaneous
Audio Output	AC-97 audio interface (requires an audio extension module P/N: PCA-AUDIO-00A1)
SATA
Channel	2
Max. Data Transfer Rate	150MB/Sec
SCSI
Channel	2
Controller	Adaptec AIC-7899
Interface	Ultra 160
Max. Data Transfer Rate	160MB/Sec
System
BIOS	Award 4 Mb FWH
Chipset	Intel 865G + ICH5
CPU	Intel Pentium 4; Intel Celeron
L2 Cache	512/256 KB; 128 KB
Max. Speed	3.06 GHz (533 FSB), 3.2 GHz (800 FSB), 2.4 GHz
Watchdog Timer
Interval	Programmable, 1~255 sec.
Output	Interrupt, system reset
