You are here: Home / INDUSTRIAL MOTHERBOARDS / Mini ITX Motherboard / RBT EMB-APL1

RBT EMB-APL1

»DDR3L 1333/1600/1867 MHz SODIMM x 2, Up to 8 GB

»Three Independent Display: VGA x 1, HDMI x 1, LVDS/eDP x 1

»Realtek 8111G, Gigabit Ethernet x 2

»COM Port x 6 (RS-232 x 5, RS-232/422/485 x 1)

»M.2 Slot(M-key) x 1, M.2 Slot(E-key) x 1, PCIe2.0 [x1] x 1

»12~24V DC Wide Range Voltage Power Input



Category: Mini ITX Motherboard
  • Description

Description

SPEC ITEMDESCRIPTION
System
ProcessorN4200, (4C @ 2.50GHz CPU [Burst Mode] 750MHz GFX [Turbo], ~6W TDP)
N3350, (2C @ 2.40GHz CPU [Burst Mode], 650MHz GFX [Turbo], ~6W TDP)
E3930, (2C @ 1.80GHz CPU [Burst Mode], 550MHz GFX [Turbo], ~6.5W TDP)
ChipsetIntergrated into SoC
MemoryDDR3L 1333/1600/1867MHz SODIMM x 2, max. 8GB, non-ECC, un-buffered memory
Graphics—
I/O ChipsetNCT6116D
EthernetRealtek PCIe Gb LAN 8111G x 2
AudioRealtek® ALC3236-CG
TPMNuvoton NPCT652ABCYX TPM2.0 (default: No)
Expansion SlotPCIe2.0 [x1] x 1
M.2 M key (22 x 42mm) x 1, for SATA
M.2 E Key (22 x 30mm) x 1, for PCIe
BIOS128Mbit Flash ROM x 1, AMI BIOS
H/W MonitorTemperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis
Watchdog Timer1~255 steps by software program
Smart Fan ControlChassis Fan (Fanless)
Wake On LAN/ PXEYes (WOL/PXE)
Power StateS3, S4, S5
Graphics
Graphics ChipsetIntel® HD Graphics
Graphics Multi DisplayThree Independent Display
VGAUp to 1920 x 1200 @60Hz
DVI—
HDMIUp to 3840 x 2160 @ 30Hz
DisplayPort—
LVDSUp to 1920 x 1200 @60Hz, Daul Channel 18/24 bit (via PS8625) (colay with eDP)
eDPUp to 4096 x 2160 @60Hz
Backlight ControlVoltage/PWM
Environmental & power
BatteryLithium battery
Power Requirement12V~24V wide-range voltage input back panel DC jack x 1; 4-pin ATX Power connector x 1
Operating Temperature32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity0% ~ 90% RH, non-condensing
CertificationCE & FCC Class A
Form FactorMini-ITX: 6.7″ x 6.7″ (170mm x 170mm)
Weight1.1 lb (0.5 Kg)
MTBF (hours)263,080
Rear I/O ports
USBUSB 3.0 x 2, USB 2.0 x 2
Display I/OHDMI x 1, VGA x 1
Audio I/OMic-in, Line-out
LAN I/ORJ-45 x 2
Serial Port—
PS/2 Port—
OthersDC power jack x 1
Internal I/O connectors
StorageSATA 6.0Gb/s x 2(1 colay with M.2 M-key),
M.2 M-key (22 x 42mm) x 1
USBUSB 2.0 headers support additional 3 USB ports (2*5-pin, p=2.00mm) x 2
Display I/O40-pin LVDS/eDP connector x 1(default eDP)
Audio I/O—
Serial PortRS-232/422/485 x 1, RS-232 x 5
PS/2 Port—
Parallel Port—
DIO8-bit x 1 (In/Out programmable)
Fan4-pin Chassis Fan x 1
Power—
OthersFront panel header x 1, Clear CMOS jumper x 1, AT/ATX mode select jumper (optional) x 1, SATA power connector x 1, M.2 E key (22 x 30mm) for PCIe x 1
OS
OS supportWIndows® 10 64bit
Ubuntu16.04.02/Kernel4.8.0

Related products

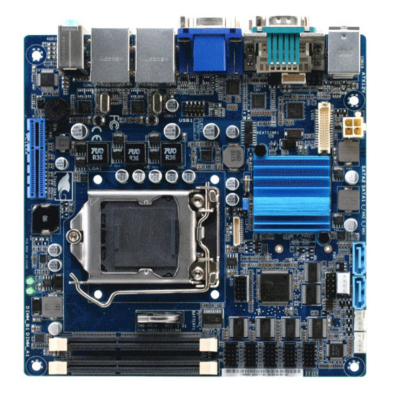

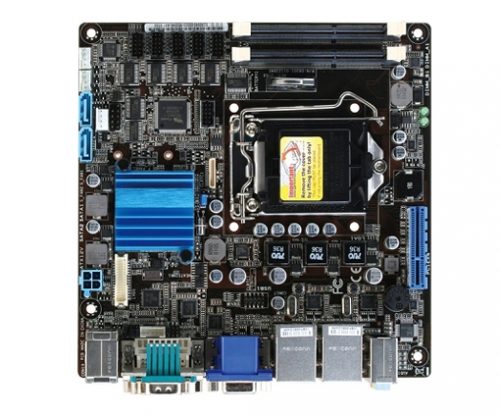

  • RBT EMB-H61A
