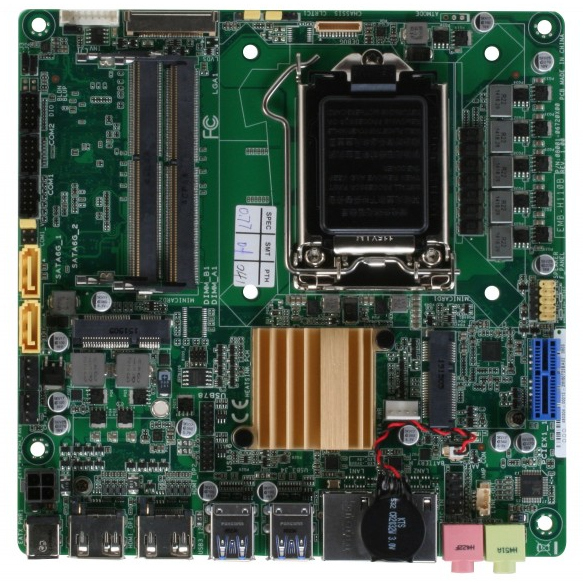

SPEC ITEM
| DESCRIPTION |
| System |
| Processor | 6th/7th Generation Intel® Core™ i7/i5/i3, LGA1151 Socket Processor, Max. 65W TDPs |
| Chipset | Intel® H110 |
| Memory | DDR4 2133/1867 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| Graphics | Intel® HD Graphics |
| I/O Chipset | NCT6791D |
| Ethernet | Realtek PCIe Gb LAN 8111G x 2 |
| Audio | Realtek® ALC887 |
| TPM | Infineon SLB96XX TT 1.2/2.0 (default: No) |
| Expansion Slot | PCIe2.0 [x1] x 1, Full-size Mini-Card (mSATA default) (PCIe+USB optional)x 1, Half-size Mini-Card (PCIe+USB) x 1 |
| BIOS | 64 M bit Flash ROM, AMI BIOS |
| H/W Monitor | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| Watchdog Timer | 1~255 steps by software program |
| Smart Fan Control | CPU Fan/ Chassis Fan |
| Wake On LAN/ PXE | Yes (WOL/PXE) |
| Power State | S3, S4, S5 |
| Graphics |
| Graphics Chipset | — |
| Graphics Multi Display | HDMI1+HDMI2, |
| HDMI1+DP2, |
| DP1+HDMI2, |
| HDMI1+LVDS, |
| HDMI2+LVDS, |
| HDMI1+eDP, |
| HDMI2+eDP, |
| DP1+DP2, |
| DP1+LVDS, |
| DP2+LVDS, |
| DP1+eDP, |
| DP2+eDP |
| VGA | — |
| DVI | — |
| HDMI | Up to 4096 x 2160 @24 Hz / 2560 x 1600 @60 Hz, with Digital Audio (HDMI/ DP Combo) |
| DisplayPort | Up to 4096 x 2160 @24 Hz / 3840 x 2160 @60 Hz, with Digital Audio (HDMI/ DP Combo) |
| LVDS | Up to 1920 x 1200 @60 Hz, Dual Channel 18/24-bit colay |
| eDP | UP to 4096 x 2340 @60Hz |
| Backlight Control | Voltage/PWM |
| Environmental & power |
| Battery | Lithium battery |
| Power Requirement | 12VDC |
| Operating Temperature | 32°F ~140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~185°F (-40°C ~85°C) |
| Operating Humidity | 0% ~ 90% R/H, non-condensing |
| Certification | CE & FCC |
| Form Factor | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| Weight | 1.1 lb (0.5 Kg) |
| MTBF (hours) | 315,210 |
| Rear I/O ports |
| USB | USB 3.0 x 4 |
| Display I/O | DP/HDMI (BOM Change) x 2 |
| Audio I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| Serial Port | — |
| PS/2 Port | — |
| Others | DC Jack x 1 |
| Internal I/O connectors |
| Storage | SATA3 (6.0Gb/s) x 2, Full Size Mini-Card (mSATA) x 1, SATA power connector x 1 |
| USB | USB 2.0 (2 x 5-pin, 2.00mm) x 2 ports support additional 4 USB. |
| Display I/O | 40-pin LVDS connector x 1, |
| 40-pin eDP connector x 1, |
| LVDS 3.3V /5V jumper x 1, |
| LCD DC / PWM mode jumper x 1, |
| LCD backlight connector (inverter) x 1, |
| LCD backlight 12V /5V jumper x 1 |
| Audio I/O | AAFP x 1, Speaker x 1 |
| Serial Port | Boxer header for COM (RS-232/422/485) x 1, Boxer header for COM (RS-232) x 1 |
| PS/2 Port | — |
| Parallel Port | — |
| DIO | Digital I/O box header x 1 |
| Fan | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| Power | 12V AUX Power Connector x 1, AT/ATX mode select jumper (optional) x 1 |
| Others | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard (pin header) x 1, CMOS jumper x 1 |
| OS |
| OS support | Windows® 7 32/64-bit |
| Windows® 8.1 32/64-bit |
| Windows® 10 64-bit |
| Ubuntu16.04.02/Kernel4.8.0 |
