Onboard AMD Geode™ LX800 Processor
»AMD Geode™ LX + CS5536
»DDR 333 MHz SODIMM, Up to 1 GB or DDR 400 MHz SODIMM, Up to 512 MB
»10/100Base-TX Ethernet x 2, RJ-45 x 2
»Up to 24-bit Single Channel LVDS/ TTL LCD & CRT
»AC97 Codec 2CH Audio
»EIDE x 1, Floppy Disk Drive x 1, CompactFlash™ x 1
»COM x 2, Parallel x 1, USB2.0 x 4, 8-bit Digital I/O
»Mini-PCI And PC/104 Expansions
»+5V Only Operation
| SPEC ITEM | DESCRIPTION |
| System | |
| Form Factor | 3.5″ SubCompact Board |
| CPU | Onboard AMD Geode™ LX 800 |
| CPU Frequency | 500 MHz |
| Chipset | AMD Geode™ LX |
| Memory Type | DDR333 SODIMM x 1 (DDR400 optional) |
| Max. Memory Capacity | 1 GB |
| BIOS | Award 1 MB |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Power Requirement | +5V |
| Power Supply Type | AT/ ATX |
| Power Consumption (Typical) | LX 800 500 MHz, DDR400 1 GB, 1.17A@+5V |
| Dimension (L x W) | 5.75″ x 4″ (146mm x 101.6mm) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C), -4°F ~ 158°F (-20°C ~ 70°C) for WiTAS 1 |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (hours) | 90,000 |
| Certification | CE/FCC |
| Display | |
| VGA/LCD Controller | AMD Geode™ |
| Video Output | CRT, TTL LCD, LVDS LCD |
| Backlight inverter supply | Up to 24-bit single channel TTL/LVDS |
| I/O | |
| Ethernet | 10/100Base-TX x 2, Realtek RTL 8139DL |
| Audio | High Definition Audio Interface |
| USB Port | USB2.0 x 4 |
| Serial Port | RS-232 x 1, RS-232/422/485 x 1 |
| Parallel Port | SPP/EPP/ECP x 1 |
| HDD Interface | UDMA33 x 1 |
| FDD Interface | FDD x 1 |
| SSD | CompactFlash™ |
| Expansion Slot | Mini-PCI, PC/104 |
| DIO | 8-bit |
| SIM | — |
| TPM | — |
| Touch | — |

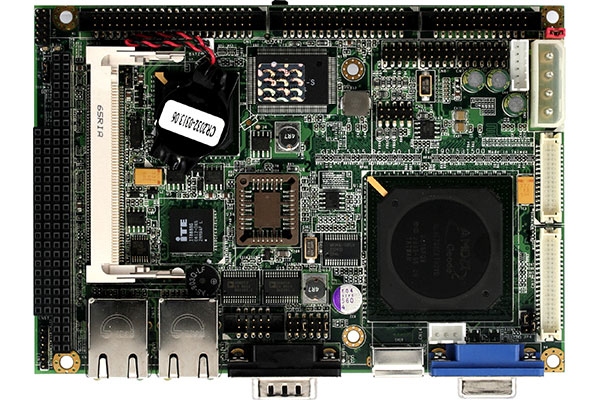

RBT GENE-5315 Rev. B
