Description
»Intel® LAN i211AT x4 Gigabit Ethernet, RJ-45 x 4
»HDMI x 2: HDMI 1 (w/ Audio), HDMI 2 (w/o Audio)
»USB 2.0 x 2, USB 3.0 x 1, COM x 1
»Mini-Card x 1 (Full-size)
»SATA 2.0 x 1
»DC 12V ATX Mode
»12 ~ 24V DC Input, ATX Mode

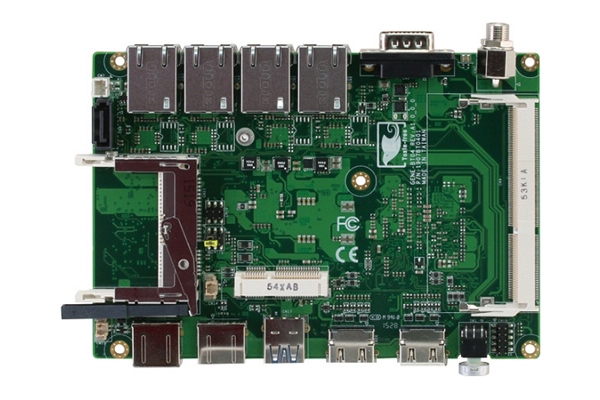

RBT GENE-BT04
»Intel® Celeron® J1900/ N2807 Processor SoC
»DDR3L 1333 SODIMM slot x1, Max. up to 8GB
Hardware Specifiations
| SPEC ITEM | DESCRIPTION |
| System | |
| Form Factor | 3.5” SubCompact Board |
| CPU | Intel® Celeron® J1900/ N2807 Processor SoC |
| CPU Frequency | Up to 2.0GHz |
| Chipset | Intel® Celeron® J1900/ N2807 Processor SoC |
| Memory Type | DDR3L 1333, SODIMM x 1 |
| Max. Memory Capacity | Up to 8G |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Power Requirement | +12V ~ +24V |
| Power Supply Type | ATX mode |
| Power Consumption (Typical) | Intel® N2807, DDR3L 1600MHz 4G, 0.65A@ +12V |
| Dimension (L x W) | 5.75″ x 4″ (146mm x 101.6mm) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (hours) | 155,000 |
| Certification | CE/FCC |
| Display | |
| VGA/LCD Controller | Intel® Celeron® J1900/ N2807 Processor SoC |
| Video Output | HDMI x 2: HDMI 1(w/Audio), HDMI 2(w/o Audio) |
| Backlight inverter supply | — |
| I/O | |
| Ethernet | Intel® I211AT(or 210), 10/100/1000Base-TX, RJ-45 x 4 |
| Audio | High definition audio interface |
| USB Port | USB2.0 x 2 , USB 3.0 x 1 |
| Serial Port | RS-232 x 1 |
| Parallel Port | — |
| HDD Interface | SATA 2.0 x 1 |
| FDD Interface | — |
| SSD | CFast™ x 1 |
| Expansion Slot | Mini-Card x 1 (for USB only) |
| DIO | 4 Bit |
| SIM | x 1 |
| TPM | x 1 |
| Touch | — |
| Touch | x 1 (USB interface) |
| TPM | TPM2.0 x 1 (optional) |
| Touch | x 1 |
