Description
»VGA, LVDS, eDP (optional, support by BOM change)
»2 CH Audio, Support 8ohm/2W Speaker
»9 USB 2.0 , 6 COM
»Mini-Card Slot x 1 (Full-size), mSATA x 1(Half-size)
»DC 12V AT/ATX Mode

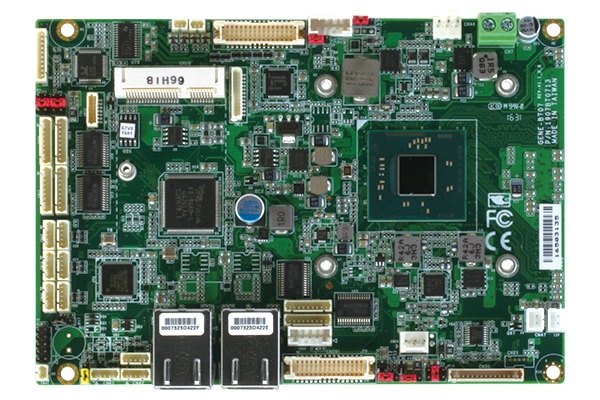

RBT GENE-BT07
- Intel® Celeron® J1900 Processor SoC
- DDR3L 1333 SODIMM Memory Max. up to 8GB
Hardware Specifiations
| SPEC ITEM | DESCRIPTION |
| System | |
| Form Factor | 3.5” SubCompact Board |
| CPU | Intel® Celeron® J1900 Processor SoC |
| CPU Frequency | Up to 2.0 GHz |
| Chipset | Intel® Celeron® J1900 Processor SoC |
| Memory Type | DDR3L 1333MHz SODIMM x 1 |
| Max. Memory Capacity | Up to 8GB |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Power Requirement | +12V |
| Power Supply Type | AT/ ATX Mode |
| Power Consumption (Typical) | Intel® Celeron® J1900, DDR3L 1600MHz 8G, 1.06A@+12V |
| Dimension (L x W) | 5.75″ x 4″ (146mm x 101.7mm) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | 40°F ~ 176°F (-40°C ~ 81°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (hours) | 204,000 |
| Certification | CE/FCC |
| Display | |
| VGA/LCD Controller | Intel® Celeron® J1900 Processor SoC |
| Video Output | VGA, LVDS, eDP (optional, support by BOM change) |
| Backlight inverter supply | 18/24-bit dual channel LVDS LCDs |
| I/O | |
| Ethernet | RTL8111E, RJ-45 x 2 |
| Audio | Realtek ALC892 CODEC, MIC-In |
| AMP TI3113, Support 8ohm/4W speaker | |
| USB Port | USB2.0 x 9 |
| Serial Port | RS-232 x 6 |
| Parallel Port | — |
| HDD Interface | — |
| FDD Interface | — |
| SSD | mSATA x 1 (half size) |
| Expansion Slot | Mini-Card x 1 (Full-size) |
| DIO | — |
| SIM | — |
| TPM | Reserve USB2.0 x 1 connector to expend |
| Touch | — |
| TPM | TPM2.0 x 1 (optional) |
| Touch | x 1 |
