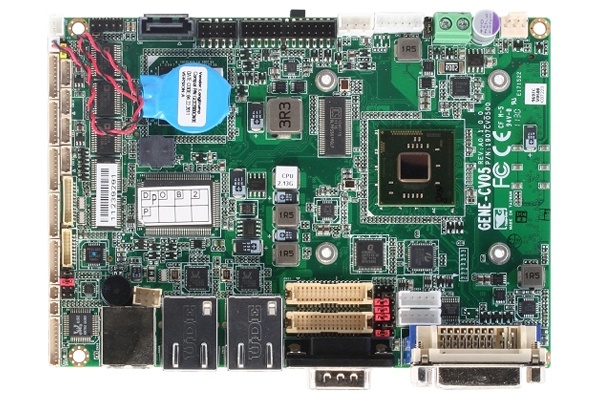

»Intel® Atom™ D2550/N2800/N2600 Processor
»Intel® NM10
»DDR3 800/1066 SODIMM x 1, Up to 4 GB For Intel® Atom™ D2550/ N2800 and Up to 2 GB For Intel®
»Atom™ N2600
»Gigabit Ethernet x 2, RJ-45 x 2
»CRT, DVI, 18/24-bit Single Channel LVDS LCD +
»18/24-bit Dual-Channel LVDS LCD For Intel® Atom™ D2550 CRT, DVI, 18-bit Single Channel LVDS LCD +
»18/24-bit Dual-Channel LVDS LCD For Intel® Atom™ N2800/N2600
| SPEC ITEM | DESCRIPTION |
| System | |
| Form Factor | 3.5” SubCompact Board |
| CPU | Intel® Atom™ D2550/N2800/N2600 |
| CPU Frequency | Up to 1.86GHz |
| Chipset | Intel® NM10 |
| Memory Type | DDR3 800/1066, SODIMM x 1 |
| Max. Memory Capacity | 4 GB |
| BIOS | SPI type |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Power Requirement | +12V |
| Power Supply Type | AT/ ATX |
| Power Consumption (Typical) | Intel® Atom™ N2800, DDR3 1333 4 GB, 1.00A@+12V |
| Intel® Atom™ N2600, DDR3 1066 2 GB, 0.87A@+12V | |
| Intel® Atom™ D2550, DDR3 1333 4 GB, 1.24A@+12V | |
| Dimension (L x W) | 5.75″ x 4″ (146mm x 101.6mm) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (hours) | 62,000 |
| Certification | CE/FCC |
| Display | |
| VGA/LCD Controller | Intel® Atom™ D2550/N2800/N2600 integrated |
| Video Output | CRT+LVDS, CRT+DVI, LVDS+DVI, LVDS+LVDS |
| Backlight inverter supply | Up to 24-bit Dual-Channel LVDS |
| I/O | |
| Ethernet | Realtek RTL 8111E x 2 ,10/100/1000Base-TX, RJ-45 x 2 |
| Audio | High Definition Audio Interface |
| USB Port | USB2.0 x 6 |
| Serial Port | RS-232 x 5 , RS-232/422/485 x 1 |
| Parallel Port | SPP/EPP/ECP x 1 (Shared with COM6 by BOM) |
| HDD Interface | SATA2.0 x 1 |
| FDD Interface | — |
| SSD | CFast™ (alternative with mSATA by BOM and also occupy one Mini-Card location) |
| Expansion Slot | Mini-Card x 1 |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | x 1 |
| Touch | x 1 |
