| SPEC ITEM | DESCRIPTION |
| System |
| Processor | Intel® 3rd/ 2nd Generation Core™ i7/i5/i3/Pentium®/ Celeron® 22nm LGA 1155 Processors |
| Chipset | Intel® H61 Express Chipset |
| Memory | 240-pin DIMM x 2, max. 16GB, DDR3 1333/1066/800 MHz, non-ECC, un- |
| buffered memory, Dual channel memory architecture |
| I/O Chipset | Fintech 81866D (5 COM), Fintech 81216HD (8 COM) x 2 |
| Ethernet | Realtek RTL8111F Giga LAN x 2 |
| Audio | Realtek ALC887 |
| TPM | — |
| Expansion Slot | PCIe 2.0[x16] Slot x 1, PCIe 2.0 [x1] Slot x 1, PCI x 1, Half Size Mini-Card x 1 |
| BIOS | 64Mbit Flash ROM, AMI BIOS |
| H/W Monitor | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis |
| Watchdog Timer | 1~255 steps by software program |
| Smart Fan Control | CPU Fan/ Chassis Fan |
| Wake On LAN/ PXE | Yes (WOL/PXE) |
| Power State | S3, S4, S5 |
| Graphics |
| Graphics Chipset | Intel® HD Graphics |
| Graphics Multi Display | VGA + LVDS, VGA+DVI, LVDS+DVI |
| VGA | Up to 1920 x 1200 @75Hz |
| DVI | Up to 1920 x 1200 @60 Hz |
| HDMI | — |
| DisplayPort | — |
| LVDS | Up to 1920 x 1200 @60 Hz |
| eDP | — |
| Backlight Control | Voltage/ PWM |
| Environmental & power |
| Battery | Lithium battery |
| Power Requirement | 24-pin ATX connector x 1, 4-pin ATX 12V Power connector x 1 |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 80% RH , non-condensing |
| Certification | CE & FCC Class A |

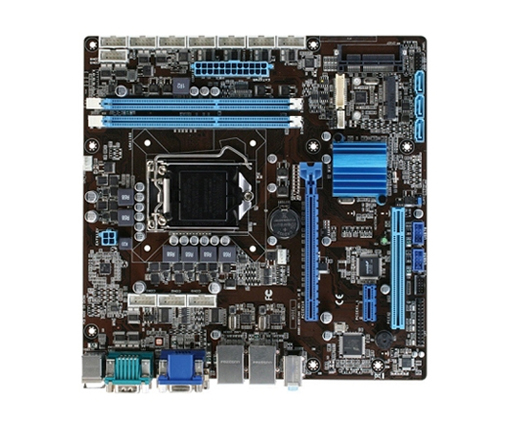

| Form Factor | Micro-ATX Form Factor, 9.6” x 9.6” (244mm x 244mm) |
| Weight | 1.55 lb (0.7 Kg) |
| MTBF (hours) | 87274 |
| Rear panel I/O ports |
| USB | USB 2.0 ports x 4 port |
| Display I/O | VGA x 1, DVI-D x 1, |
| Audio I/O | Audio Jack x 3: Line-in, Mic-in, Line-out |
| LAN I/O | LAN (RJ-45) port x 2 |
| Serial Port | RS232 DB-9 connector x 2 |
| PS/2 Port | PS/2 Keyboard Connector x 1, PS/2 Mouse Connector x 1 |
| Others | — |
| Internal I/O connectors |
| Storage | SATA2 (3.0Gb/s) connectors x 3, CFast Socket x 1 |
| USB | USB 2.0 port x 2 connectors support additional USB port x 4 |
| Display I/O | — |
| Audio I/O | — |
| Serial Port | RS-232/422/485 box header x 2 |
| PS/2 Port | — |
| Parallel Port | LPT connector x 1 |
| DIO | 8-bit Digital I/O interface x 1 (In/Out programmable) |
| Fan | CPU Fan connector (4-pin) x 1, Chassis Fan connector (4-pin) x 1 |
| Others | Front panel header x 1, Clear CMOS jumper x 1, BIOS flash header (2[x4]P p=1.27mm) x 1 |
| OS |
| OS support | Windows® XP 32-bit, Windows® 7 32/64-bit, Linux Fedora |
