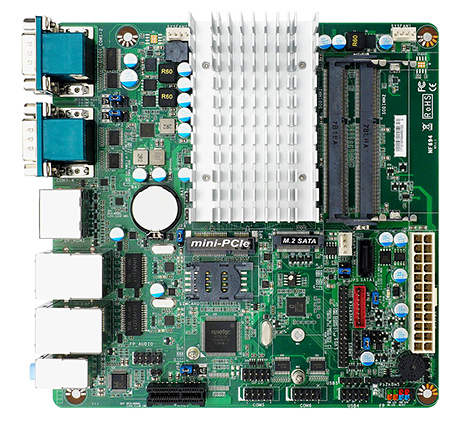

RBT NF694

»Intel Apollo Lake Pentium N4200 or Celeron N3350 Processors, 6W

»Long-Life Embedded Class with Planned Lifecycle Through Q3’2023

»Supports up to 3 display, DP, HDMI, and LVDS

»Gigabit LAN Ports, 1 * M.2 SATA 2242/2260

»Supports 4-6 COMs, PCI-E x1

»ECO-design for EuP/ErP

Description

SPEC ITEM	DESCRIPTION
Processor	Intel® Pentium N4200 Processor Quad Core 1.10 GHz – 2.50 GHz, 6W TDP
Processor	Intel® Celeron N3350 Processor Dual Core 1.10 GHz – 2.40 GHz, 6W TDP
Memory	2 * 204-pin DDR3L-1866 up to 8GB total, 1.35V required
Memory	1 * 204-pin DDR3L-1866 up to 8GB total, 1.35V required
Graphics	Intel HD Graphics 505, 200MHz – 750MHz (N4200)
Graphics	Intel HD Graphics 500, 200MHz – 650MHz (N3350)
Audio	Realtek ALC662 HD Audio
LAN	2 x Realtek RTL8111H Gigabit LAN
LAN	1 x Realtek RTL8111H Gigabit LAN
Storage	1 x SATA3 6Gb/s Connector
Storage	1 x M.2 SATA 2242/2260
Super IO	NUVOTON NCT6116D
TPM	Intel fTPM 2.0 (PTT) Trusted Computing Firmware
TPM	OEM Option: Onboard TPM v1.2 or v2.0
	Option: Onboard TPM v1.2 or v2.0
