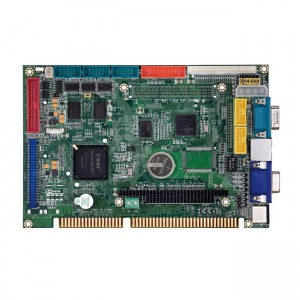

SPEC ITEM
| DESCRIPTION |
| SoC | DM&P SoC CPU Vortex86DX- 800MHz |
| Real Time Clock with Lithium Battery Backup |
| Cache | L1:16K I-Cache, 16K D-Cache, L2 Cache 128 KB |
| Bus | PC/104 standard compliant |
| PCI-104 (Optional) |
| BIOS | AMI BIOS |
| System Memory | 128/256MB DDR2 Onboard |
| Watchdog Timer | Software programmable from 30.5μ sec.to 512 sec. |
| x 2 sets (Watchdog 1 fully compatible with M6117D) |
| VGA | XGI Volari Z9s Chipset |
| VGA and TFT Flat Panel Interface Support |
| Onboard 32MB VGA Memory, support resolution up to 1280 |
| x 1024, 16M colors |
| LAN | Integrated 10/100Mbps Ethernet |
| Audio | CM119 USB Audio Controller (Optional) |
| Flash Disk Support | Onboard 4MB SPI Flash Disk |
| MSTI EmbedDisk Module (16MB and above) |
| Compact Flash Type I/II |
| PWM | 16~24 Channels |
| SRAM | support 512KB (Optional) |
| I/O Interface | Enhanced IDE port (UltraDMA-100/66/33) x1 |
| RS-232 port x3 |
| RS-232/422/485 port x1 |
| USB port (Ver2.0) x4 |
| Parallel port x1 |
| 16-bit GPIO port x1 |
| 10/100Mbps Ethernet port x1 |
| Connectors | 2.0mm 44-pin box header for IDE x1 |
| 2.0mm 44-pin box header for LCD x1 |
| 2.54mm 26-pin box header for Printer x1 |
| 2.54mm 20-pin box header for 16-bit GPIO x1 |
| 2.54mm 10-pin box header for RS-232 x3 |
| 2.54mm 10-pin box header for USB x2 |
| 2.54mm 4-pin header for -5V, -12V, +12V, GND x1 |
| 2.54mm 3-pin header for RS-485 x1 |
| 2.54mm 2-pin header for Reset x1 |
| 2.54mm 7-pin header for Redundancy Signal x1 (Optional) |
| 2.54mm 2-pin header for System-Fail-SW x1 (Optional) |
| 1.25mm 6-pin wafer for JTAG x1 |
| 1.25mm 4-pin wafer for Line-out/MIC-in x2 (Optional) |
| 4-pin male power connector x1 |
| External 15-pin D-Sub female connector for VGA x1 |
| External 9-pin D-Sub male connector for RS-232 x1 |
| External RJ-45 connector for Ethernet x1 |
| External Mini DIN connector for Keyboard/Mouse x1 |
| Type I/II Compact Flash Slot x1 |
| Power Requirement | Single Voltag +5V @ 360mA / 340mA |
| Weight | 156g |
| Board Size | 184 x 122mm (7.24 x 4.80 inches) |
| Operating Temperature | -20 °C ~ +70 °C |
| -40 °C ~ +85 °C (Optional) |
