| Dimensions | – 78.4(D) * 129(W) * 34(H) mm |
| Construction | – Lightweight aluminum alloy with extruded aluminum IO panel |
| Colors | – Black |
| BB model | – JBC400P591(W)-3160D-B (DP) |
| – JBC400P591(W)-3160H-B (HDMI) |
| MB model | – NP591-3160 |
| BIOS | – AMI UEFI |
| Memory | – 4GB DRAM on board |
| Storage Space | – 1 * M.2 SATA slot (M-Key 2242) |
| Display Interface | – 1 * DP (HDMI is optional) |
| Network | – 1 * GbE |
| – WiFi (JBC400P591W-3160D-B only) |

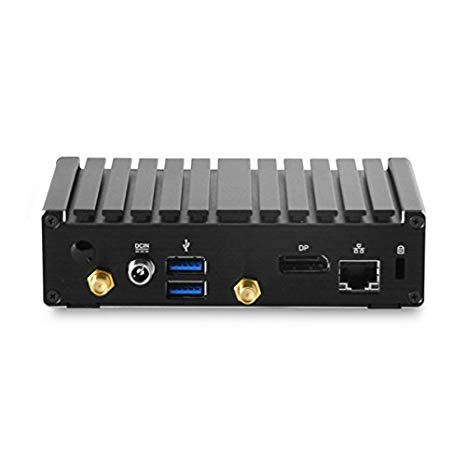

| Rear I/O Port | – 2 * USB 3.0 |
| – 1 * DP (JBC400P591(W)-3160D-B) |
| – 1 * HDMI (JBC400P591(W)-3160H-B -Optional) |
| – 1 * GbE |
| – 1 * DC-in jack |
| Expansion Slot | – 1 * Full size Mini PCI-E slot |
| Power Source | – Supports 12V DC input |
|
| – Provides AC_90~240V / DC_12V 40W adapter |
| Certification | – EMC : CE , FCC |
| – Safety : RoHS , ErP |
| Environment | – Operating Temperature : -10°C~60°C with air flow (M.2 SATA) |
| – Storage Temperature : -20°C~80°C |
| Mounting Bracket | – Wall / VESA / DIN Rail combo mounting Kit |
| Packing | – Net Weight：0.9KG |
| – Gross Weight：1.6KG |
| – Color Box Dimension：158(W) x 167(D) x 123.6(H) mm |
| Packing | – Net Weight: 1.4KG |
| – Gross Weight: 2.4KG |
| – Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm |
| OS Support | – Windows 7, Windows 8.1, Windows 10, Linux |
